ROCK AND ROLL
OREX ROTOMOULDING offers a wide range of state-of-the-art rotomoulding machines. Applying the most innovative technical solutions makes the machines effective and simple in use.

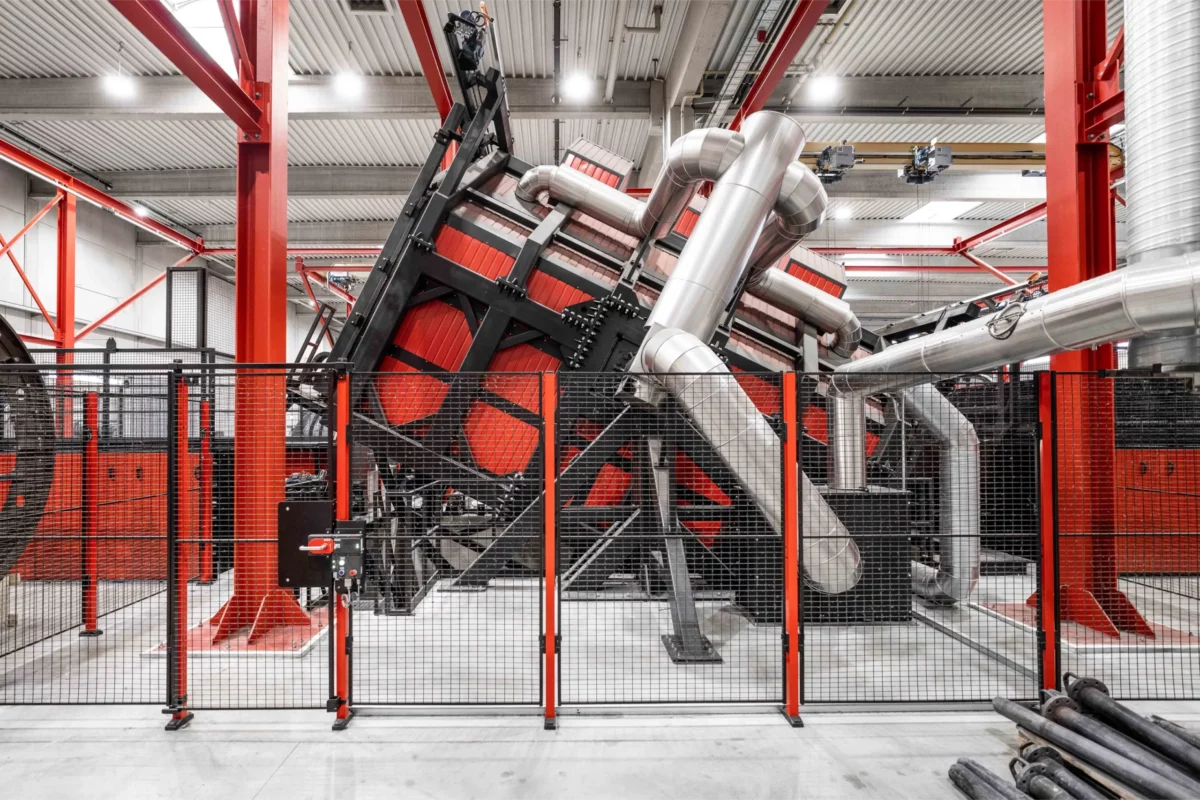

ROCK AND ROLL machines have been designed in order to meet the demand for the production of oblong and narrow elements, such as canoes or long tanks. A movable oven with an inclination of up to 45˚, with a thermoregulation system, is a guarantee of producing products of the highest quality. The machine can be additionally equipped with four rotary stations along with two cooling areas, which significantly increases productivity. The triple thermoregulation system enables the mold to heat evenly and thus produce high-quality products, including canoes, boats and large tanks. We deliver our machines with a platform or set directly on the floor. In combination with an intuitive control system, the above mentioned properties make the ROCK AND ROLL machines the best solution even for the most demanding customers.
| URG-R-3500x2700x2400 | URG-R2000/4000 | URG-R2500/5000 | |
| Heating chamber dimension | 3500x2700x2400 | 2000×4000 | 2500×5000 |
| Carriage (tower) movement [kW] | 1,1 | 0,75 | 1,5 |
| Large rotation [kW] | 4 | 3 | 4 |
| Small rotation [kW] | 2,2 | 1,5 | 2,2 |
| Thermocirculator (hot air flow) [kW] | 2,2 | 2x 1,5 | 3x 1,5 |
| Thermocirculator capacity [m3 / s] | 0,61 | 2x 0,9 | 3x 0,9 |
| Cooling ventilators | 2x 41 306 m3/h | 4x 41 306 m3/h | 4×41 306 m3/h |
| Gas burner power [kW] | 400 | 2×160 | 3×160 |
Why choose a ROCK AND ROLL machine from OREX ROTOMOULDING?
A Rock&Roll-type machine itself has an unusually large number of significant advantages. Many producers of the first-class boats, canoes or larger tanks will certainly recognize the opportunities provided by this type of machine. We have taken all possible efforts to construct the ROCK AND ROLL machine which will provide the best solutions for production of such elements/items. What is more, as un undisputed and international leader in rotomolding, we are capable of maximally adjusting the machine to rotomolding processes according to specific needs or expectations of our business partners. A ROCK AND ROLL-type machine constructed by OREX ROTOMOULDING will be recognized for the first-class components used for the construction. This is a guarantee of hard-hitting fulfillment of exorbitant production guidelines. Our ROCK AND ROLL-type machine guarantees effective and convenient work on creating plastic parts. It is also easy in use and maintenance. Even with many years of use!
FAQ – Frequently Asked Questions About Rock and Roll Machines
It is a specialized rotational molding machine designed for producing long, narrow plastic items such as kayaks, boats, or tanks. The machine combines a rocking motion of the inclined heating oven with a constant rotation of the mold, allowing even distribution of material within the mold.
The Rock and Roll machine works best for very elongated products. Typical examples include kayaks, canoes, boats, large swimming pools, and water tanks.
In the Rock and Roll machine, 'Rock' refers to the rocking and tilting motion of the heating oven, while 'Roll' refers to the rotation of the mold around its vertical axis. The combination of these movements ensures optimal distribution of the material inside the mold.
Even distribution of powder or granules ensures uniform wall thickness and high strength of the finished product. Thanks to the movements of the Rock and Roll machine, the material is distributed very evenly, which translates into quality and durability of products such as kayaks.
Rock and Roll machines are used in industries producing very large and elongated plastic components, including tourism and recreation (kayaks, yachts), swimming pool equipment, silo production, and large industrial and infrastructure tanks.
When selecting a machine, you should consider the size and shape of the parts being molded, the required production output, and the cost-effectiveness of production. Other important factors include the machine's size and capacity, energy efficiency, ease of operation, and throughput.
OREX customizes machines to a very high degree according to client needs. Each machine is individually configured, with options for selecting the heating chamber, cooling systems, and control systems to perfectly match production requirements.
OREX provides comprehensive support including consultation and advisory services, machine delivery and installation, as well as post-sale service. The company acts as a partner to the client at every stage of machine operation.
