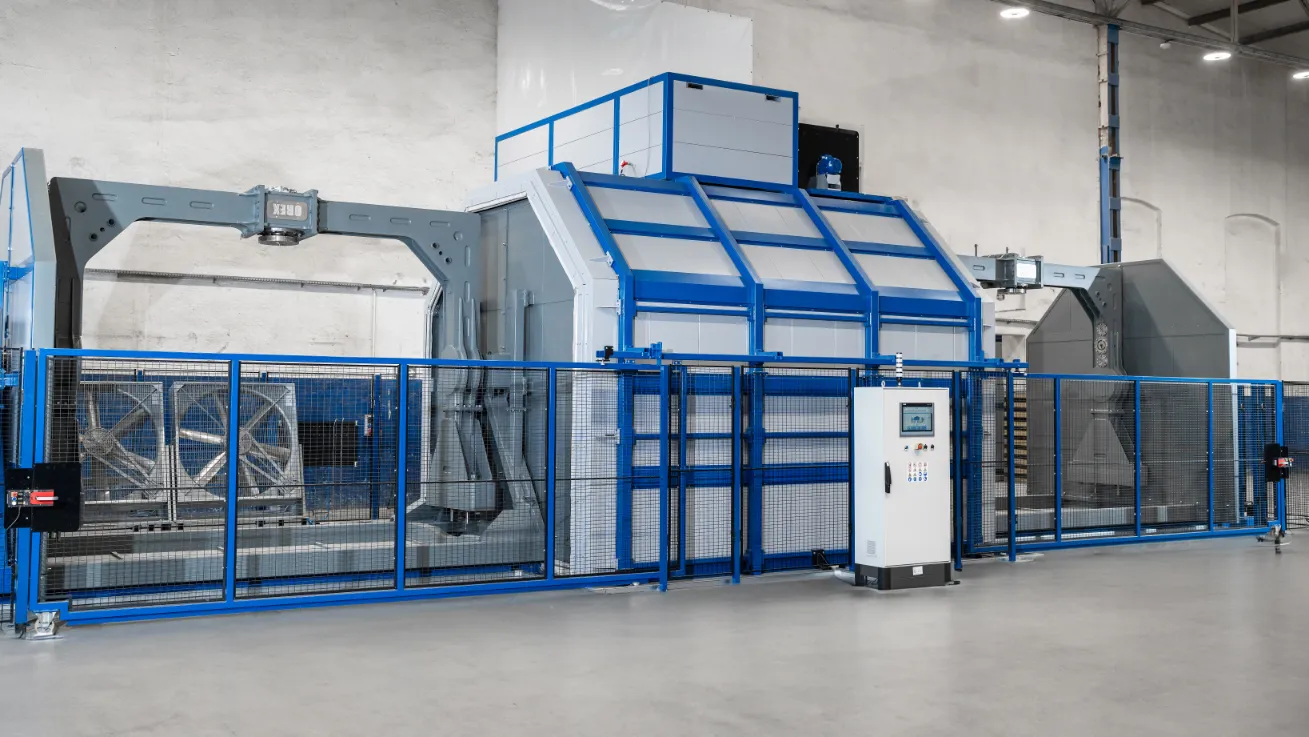

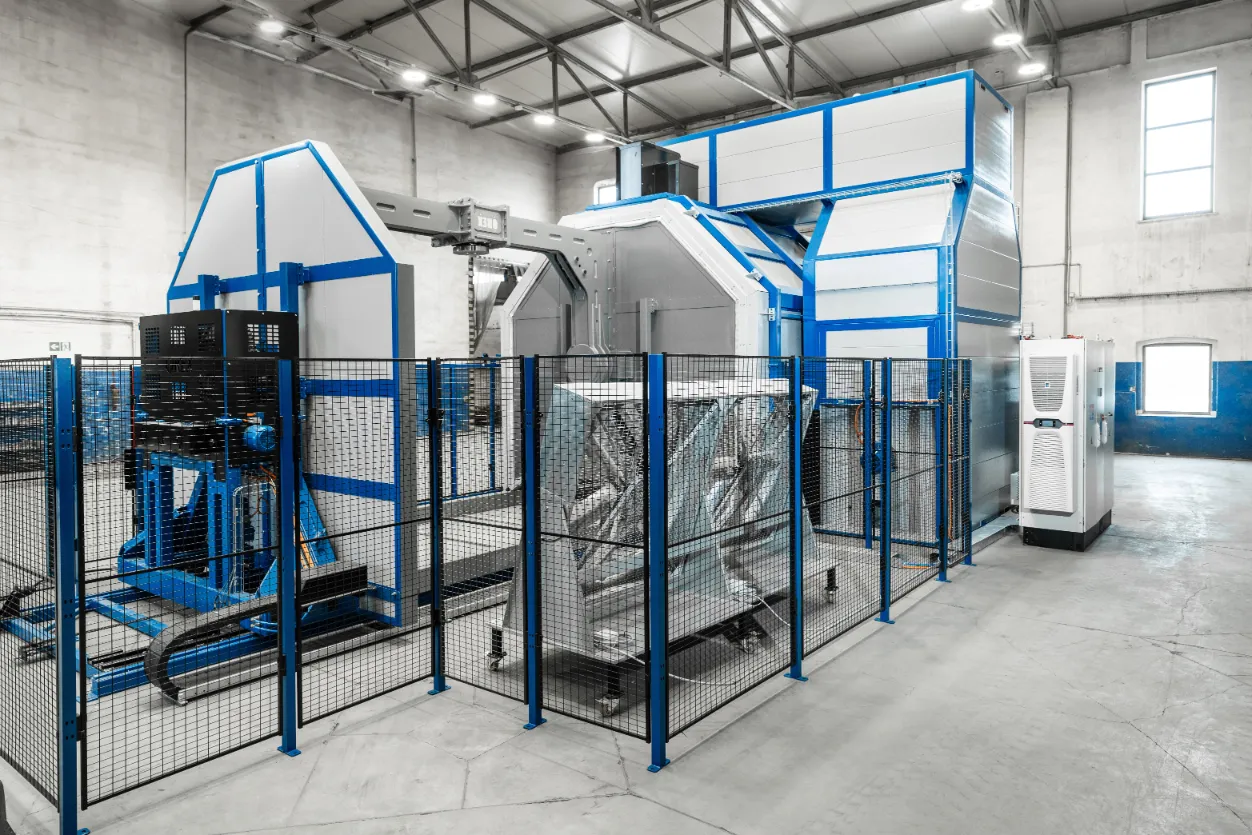

Shuttle machine
Our offer includes a wide range of rotomoulding machines designed for molding various types of plastics.
Our rotomoulding machines are constructed using brand-name components sourced from the world’s leading manufacturers, which guarantees long and trouble-free operation.

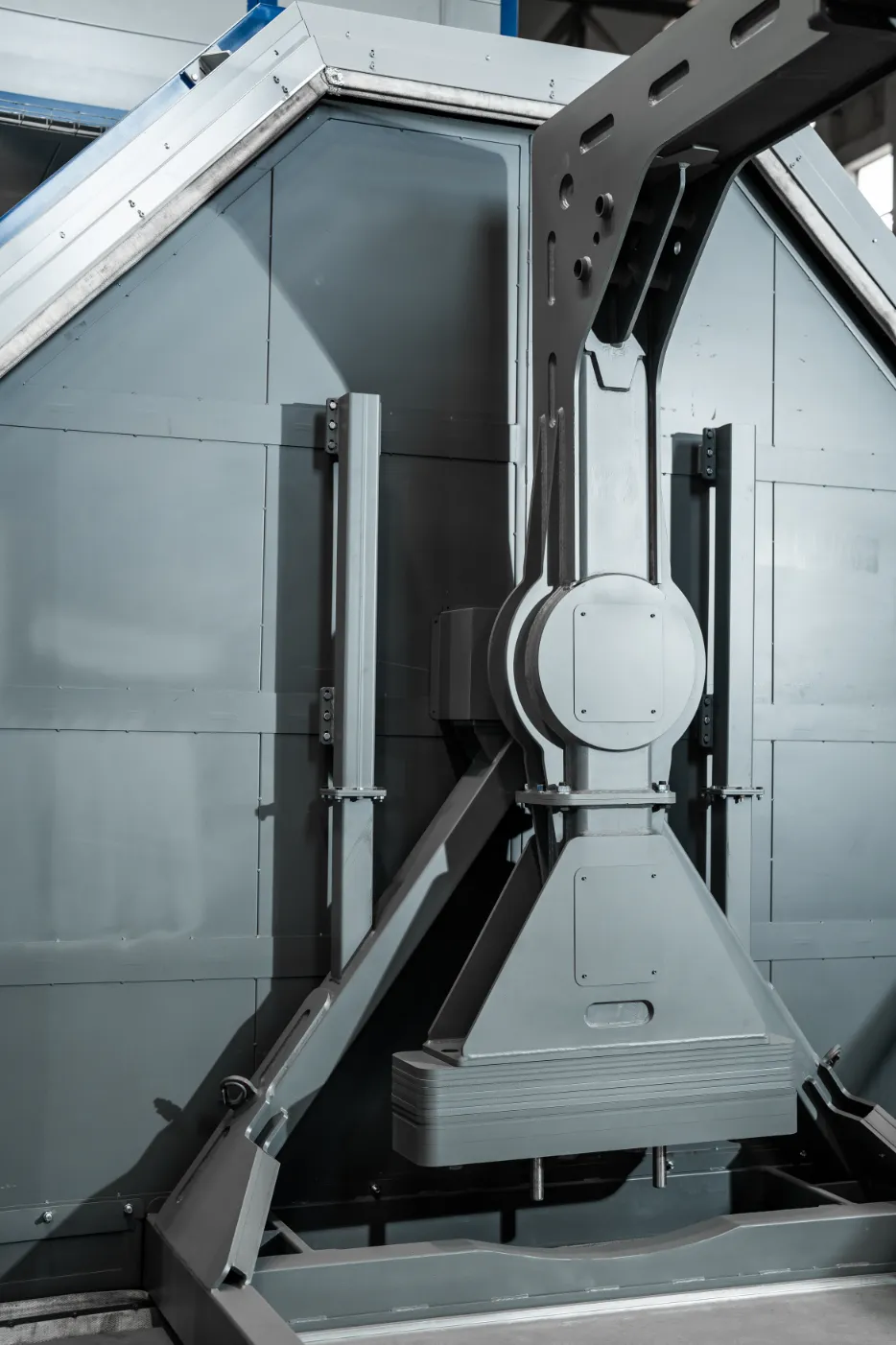

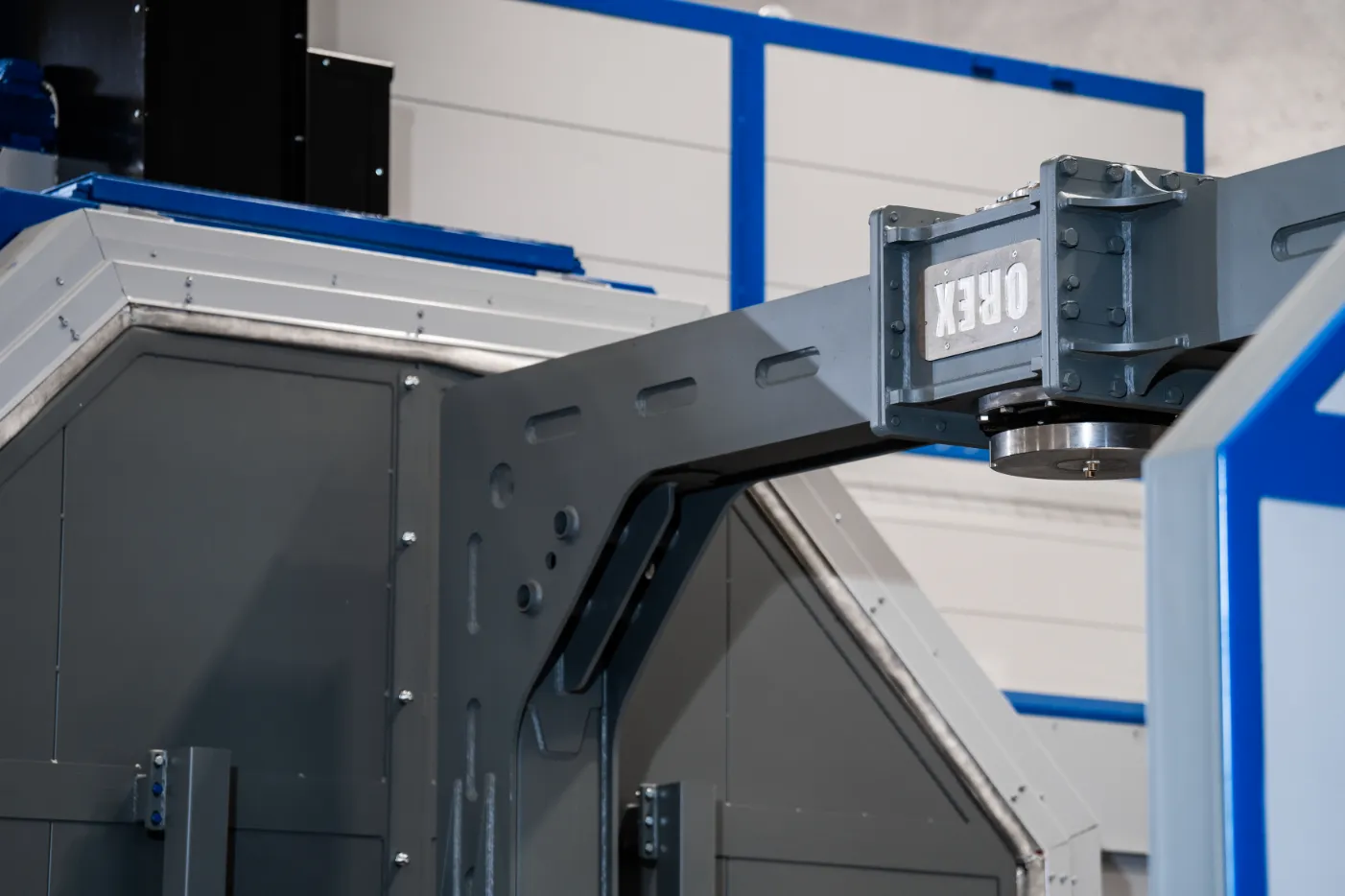

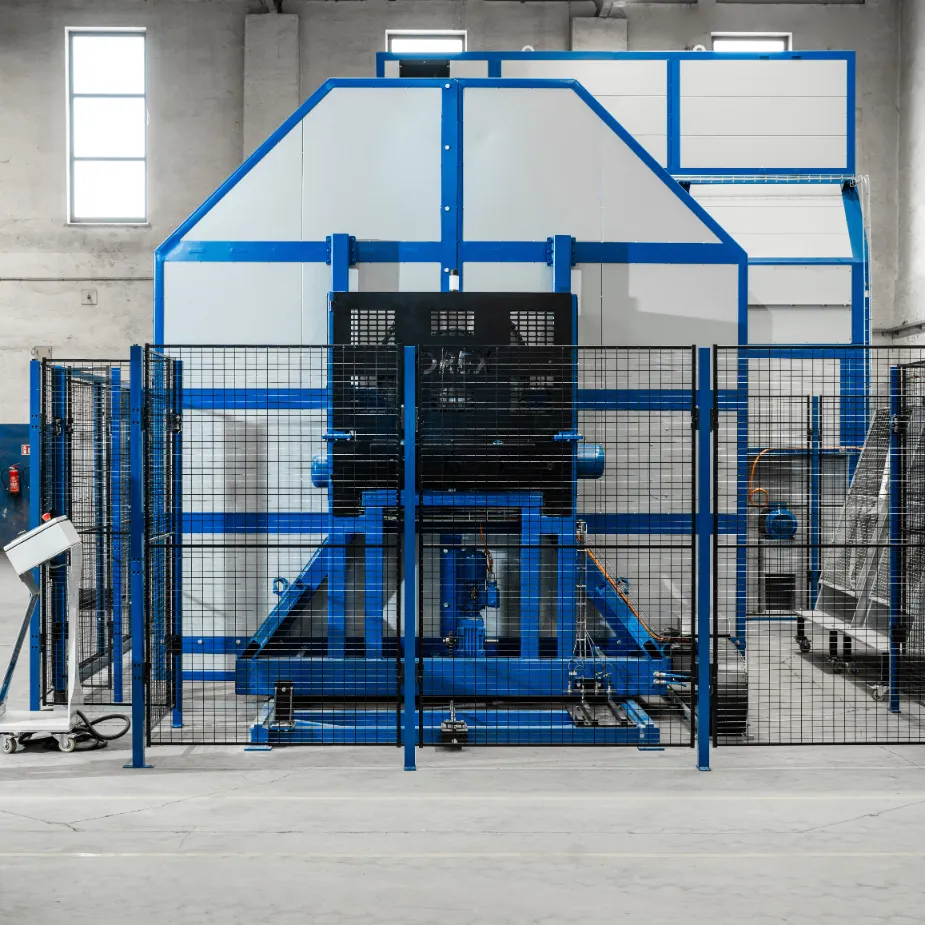

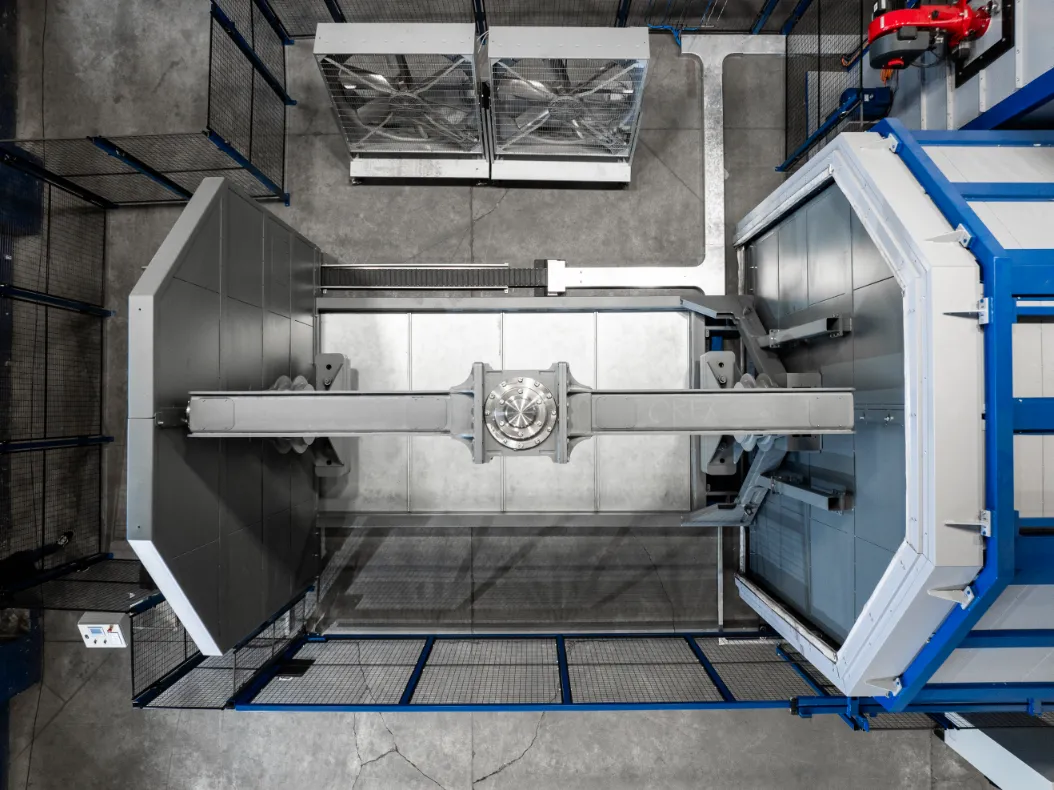

Shuttle-type machines are dedicated to customers with diverse production profiles, from medium to large sizes. The machines may be equipped with straight arms, U-arms or L-arms.
Each Shuttle machine is available in a hybrid version, i.e. with up to three power sources:
electricity
gas
fuel
We provide the Shuttle-type machines with the following heating chambers: 2200 mm, 2600 mm, 3000 mm, 3500 mm, 4500 mm, 5000 mm or 5000mm, depending on the production requirements of our customers.
| URG-2200 | URG-2600 | URG-3000 | URG-3500 | URG-4500 | URG-5000 | |
| Carriage (tower) movement [kW] | 0,75 | 1,1 | 1,1 | 1,5 | 2,2 | 3 |
| Auxiliary (small) rotation on the arm [kW] | 1,5 | 2,2 | 2,2 | 2,2 | 4 | 7,5 |
| Thermocirculator (hot air flow) [m3/s] | 0,61 | 2 | 4,2 | 4,2 | 2×6,1 | 2×11 |
| Cooling ventilators [m3/h] | 2×41 306 | 2×41 306 | 2×41 306 | 4×41 306 | 8×41 306 | 8×41 306 |
| Burner power [kW] | 405 | 405 | 630 | 630 | 2×630 | 2×630 |
| Load (max) of the straight arm | 800 | 1000 | 1200 | 1500 | 2500 | 3000 |
| Heating chamber dimension [mm] | 2200 | 2600 | 3000 | 3500 | 4500 | 5000 |
| Main rotation (high) on the arm [kW] | 2,2 | 3 | 3 | 3 | 5,5 | 7,5 |
| Thermocirculator (hot air flow) [kW] | 2,2 | 4 | 4 | 7,5 | 2×6,1 | 2×11 |
| Cooling ventilators [kW] | 2×1,1 | 2×1,1 | 2×1,1 | 4×1,1 | 8×1,1 | 8×1,1 |
| Injector (pathway/output) | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 |

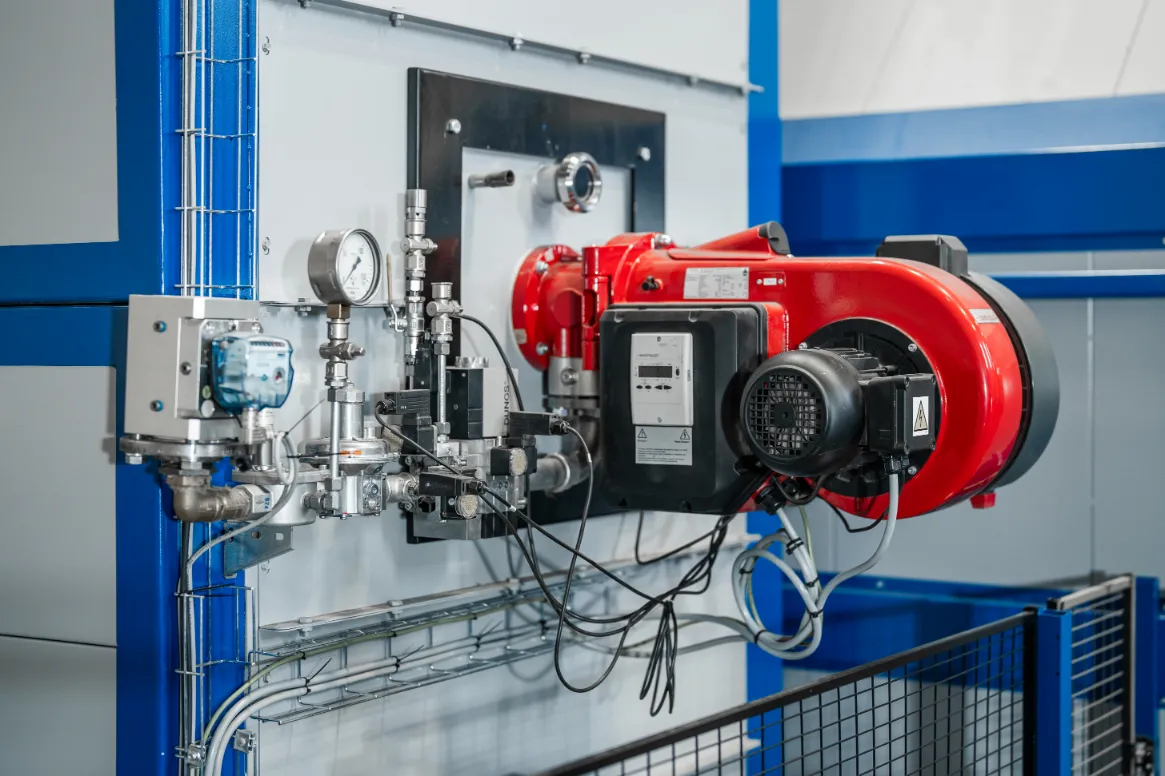

| Weishaupt burner type | WM-G10/1-A ZM | WM-G10/1-A ZM | WM-G10/2-A ZM | WM-G10/2-A ZM | WM-G10/2-A ZM | WM-G10/2-A ZM |
| Load (max) of the displaced U-arm | 800 | 1000 | 1200 | 1500 | 2500 | 3000 |
Why choose a Shuttle machine from Orex Rotomolding?
The Shuttle machine included in our offer is one of the most advanced solutions in the industry. It has gained enormous popularity among our business partners. A shuttle machine is characterized by extraordinarily multipurpose features in the effective production of plastic products. The biggest advantages include its ability to work on different sizes and in large quantities within a single work cycle. What is more, the machine is constructed with use of subassemblies by renowned producers and is a very energy-efficient device with an extremely high level of safety for daily operation. As an undisputable and international leader in rotomolding, we can guarantee maximal adjustment of our solutions to specific production needs. A Shuttle-type machine by Orex is provided in several supply options and a diverse range of heating chambers. We have been handling the production of this type of machines, their delivery, assembly or service in case of problems of any nature for many years now.
